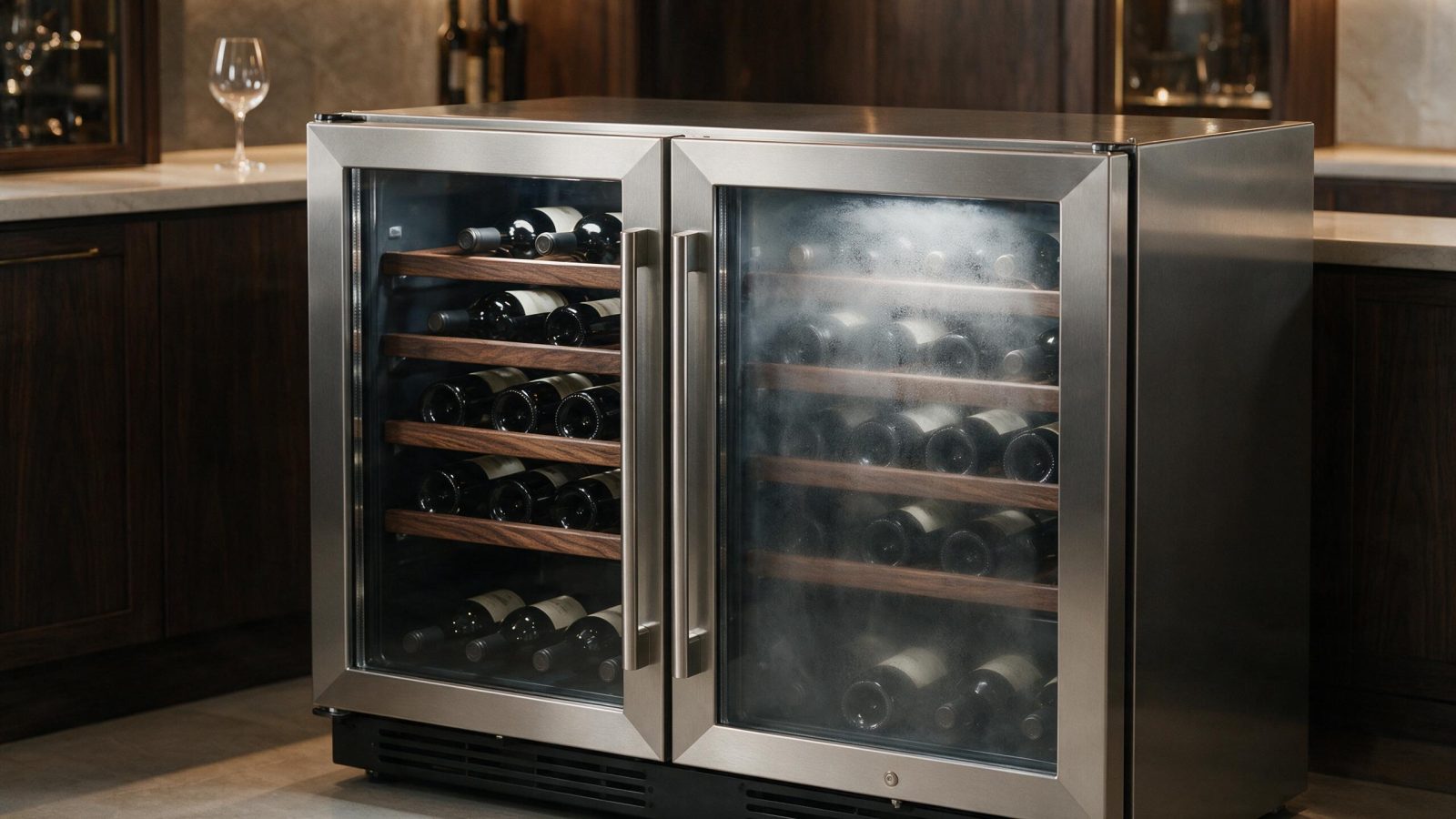

U-Line Dual-Zone Wine Refrigerator: One Zone Not Cooling

When only one zone of a dual-zone wine refrigerator is not cooling, compare the two set points, the two temperatures and how each zone is loaded. A difference between zones points toward that zone’s door area, sensor or airflow rather than the whole machine.

Quick answer: When only one zone is affected, record both zone set points and temperatures. The difference between zones is useful evidence for narrowing airflow, sensing, control, or refrigeration behavior.

A U-Line symptom is most useful when you describe exactly what changed, when it happens, and which model is installed. Similar-looking U-Line refrigerators, wine units, beverage centers, drawers, and ice machines can use different controls and service logic, so the model number should stay attached to the troubleshooting process.

Start With the Symptom, Not a Part

Before making changes, record:

• the complete U-Line model number;
• the selected temperature or operating mode;
• the actual temperature or ice-production behavior;
• any code or alarm;
• when the problem began;
• whether it is constant or intermittent;
• recent loading, cleaning, plumbing, drain, installation, or power changes.

This creates a useful baseline. Changing several settings or repeatedly resetting the appliance can erase the pattern that helps diagnosis.

Common Reasons This Happens

One door/gasket area leaks

This can create the reported symptom without proving that a specific component has failed. Record when it happens and compare it with the model’s normal operating pattern before moving to internal testing. One zone’s door or gasket area can leak even when the other is fine, so look at gasket contact around each door.

A zone sensor is inaccurate

This can create the reported symptom without proving that a specific component has failed. Record when it happens and compare it with the model’s normal operating pattern before moving to internal testing. Dual-zone models use a separate thermistor for each zone, plus evaporator thermistors, so one reading can drift without the other.

Loading differs between zones

This can create the reported symptom without proving that a specific component has failed. Record when it happens and compare it with the model’s normal operating pattern before moving to internal testing. A fully loaded zone recovers slower than a lightly loaded one. The guides remind that air temperature does not equal bottle temperature.

Control response for one zone is abnormal

This can create the reported symptom without proving that a specific component has failed. Record when it happens and compare it with the model’s normal operating pattern before moving to internal testing. Each zone has its own set point and mode, and and the guide has you set the top zone first. A set point that was changed by mistake is easy to miss.

Zone airflow or fan behavior differs

This can create the reported symptom without proving that a specific component has failed. Record when it happens and compare it with the model’s normal operating pattern before moving to internal testing. If a zone sensor fails, the guides describe a self-preservation mode that cycles the unit on a fixed schedule so cooling continues at reduced precision.

Safe Checks You Can Make

Keep owner troubleshooting external and reversible:

1. Record each zone set point.
2. Keep ventilation clear.
3. Confirm bottles/racks do not block closure.
4. Note whether one or both zones are affected.
5. Check visible gasket surfaces.

If the symptom remains, preserve the result and move to model-specific diagnosis instead of opening the appliance.

What the Pattern Can Tell You

Timing is often as important as the symptom itself.

A problem that appears immediately after a door opening, heavy load, cleaning cycle, or power interruption has a different starting point from one that develops overnight with the appliance closed and undisturbed.

Also note whether the problem affects:

• the whole appliance;
• one zone;
• one drawer;
• one stage of an ice-making cycle;
• only water/drain operation;
• only the display/control;
• cooling and another function at the same time.

Those distinctions help narrow the system that should be tested.

Error Codes: Preserve the Exact Message

If a code or flash pattern appears, record it before removing power.

U-Line has used overlapping display codes across different control platforms. Do not assume a code meaning from another model applies simply because the text is identical.

Search the U-Line error-code library

What Not to Do

• Do not repeatedly cycle power to make a recurring message disappear.
• Do not order a control board, sensor, pump, fan, compressor, or other part from the symptom alone.
• Do not bypass door switches, water-level devices, or safety controls.
• Do not open the sealed refrigeration system as an owner repair.
• Do not probe live electrical circuits unless qualified.
• Do not force a built-in appliance out of cabinetry just to inspect behind it.
• On ice equipment, do not dismantle the pump or auger solely to investigate a noise or code.

When Professional Diagnosis Is the Better Next Step

Service is appropriate when the symptom returns after normal owner checks, temperature remains outside the intended range, ice production does not recover, water will not fill or drain normally, a code returns, or internal electrical/refrigeration testing is required.

Stop using the appliance if there is smoke, arcing, a burning-electrical smell, repeated breaker trips, severe overheating, damaged wiring, or water reaching electrical parts.

How to Prepare for Service

Before the appointment:

1. photograph the model/serial tag;
2. save the code or alarm;
3. photograph frost, condensation, water, or abnormal ice;
4. note the selected setting and actual behavior;
5. describe when the symptom occurs;
6. mention panel-ready cabinetry, outdoor placement, water supply, drain-pump configuration, or other installation details when relevant;
7. do not remove cabinetry or protected service panels.

Frequently Asked Questions

Can I diagnose the failed part from this symptom?

Usually not. The symptom narrows the system to inspect, but overlapping causes still require the exact model and appropriate testing.

Why does the model number matter?

U-Line has used different controls, sensors, drainage arrangements, and parts across product generations. The model keeps troubleshooting tied to the right platform.

Should I reset the U-Line appliance?

Record any code first. One controlled reset may be reasonable when there are no electrical, overheating, or water-safety concerns. If the symptom returns, repeated resets are not a repair.

Do dual-zone U-Line wine units have separate sensors?

The guide for one dual-zone model describes a separate thermistor for each zone. That is why one zone can misbehave while the other holds temperature.

What do E0 and E9 mean on a U-Line dual-zone model?

One 2200-series guide lists E0 as the upper door open and E9 as the lower door open. Other codes on other models can mean something different, so check your own manual.
